340-25-145 EFUEL 30A, 540W ADJUSTABLE POWER SUPPLY
340-25-145 EFUEL 30A, 540W ADJUSTABLE POWER SUPPLY
  • Load image into Gallery viewer, 340-25-145 EFUEL 30A, 540W ADJUSTABLE POWER SUPPLY
  • Load image into Gallery viewer, 340-25-145 EFUEL 30A, 540W ADJUSTABLE POWER SUPPLY

340-25-145 EFUEL 30A, 540W ADJUSTABLE POWER SUPPLY

Regular price
$129.99 USD
Sale price
$129.99 USD
Regular price
$139.99 USD
Sold out
Unit price
per

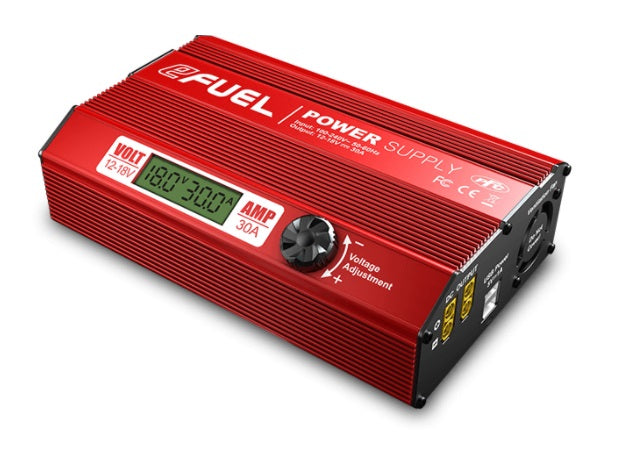

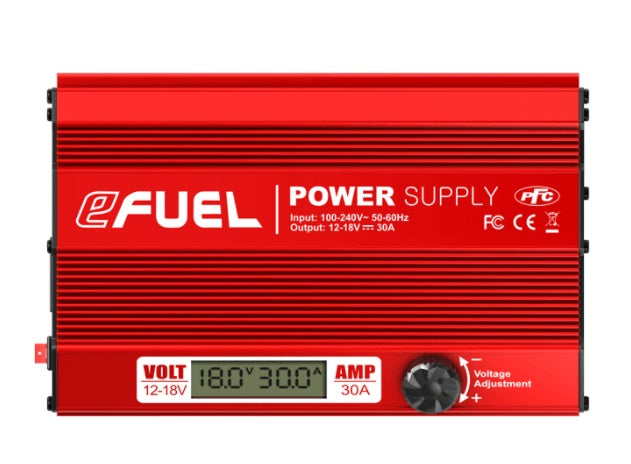

The SkyRC eFuel 30A DC Switching Power Supply is designed to use household AC power source to supply up to 30A of continuous DC power, adjustable between 12-18V DC. Large, easy to read LCD screen makes trouble-free operation a snap, and the red anodized finish looks great on your pit bench!

FEATURES:

  • Two DC power outputs, up to 30 amperes
  • Output voltage adjustable 12-18V
  • Large LCD indicates voltage and current amperes output
  • Two USB ports, 5 volts, 1000mA total for MP3 player, mobile phone and digital cameras
  • Smart cooling fan
  • Over-temperature protection
  • Overloading protection
  • Short circuit protection

SPECIFICATIONS:

Voltage…………………………………………………………………………………………………100-240V AC
Input AC Frequency…………………………………………………………………………………………50-60Hz
Output Voltage……………………………………………………………………………………12-18V DC±0.5V
Output Current………………………………………………………………………………………………30A±1A
Current Overload Protection…………………………………………………………………………≤31A 500MS
Input Fuse…………………………………………………………………………………………………… 10A Fuse
LCD Display……………………………………………Voltage Precision ±0.3V/Current Precision ±0.3A
Output Voltage Ripple………………………………………………………………………………………< 150mV
Power Efficiency………………………………………………………………………………………………89%
Power Factor……………………………………………………………………………………………………> 0.98
Over Temperature Protection………………………………………………………………………………<65℃
Cooling Method…………………………………………………………………………………………Cooling Fan
Operating Temperature………………………………………………………………………………………0-40℃
Operating Humidity……………………………………………………………………………………………0-90%
Dimensions (L*W*H)……………………………………………………………………………218x139x59.5mm
Net weight………………………………………………………………………………………………………1.62kg
