G0338 G-Force Bluetooth X Weight Gauge Air

BLUETOOTH SCALE CORNER WEIGHT SYSTEM

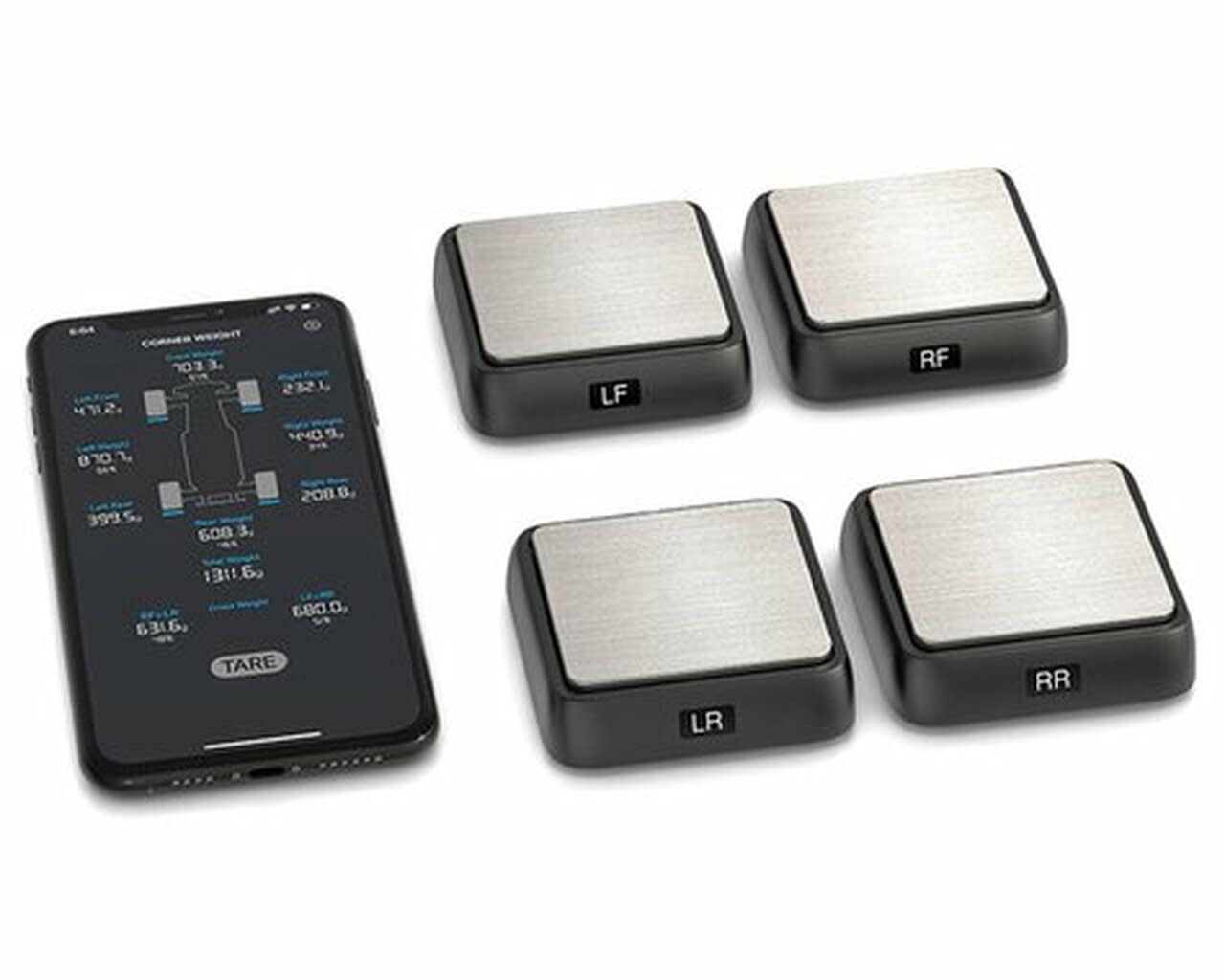

This is G Force Bluetooth X Weight Gauge Air w/4 Scales.

The G Force Bluetooth X Weight Gauge Air is the ultimate system for those hoping to get their chassis balance dialed - without a rat nest of wires strewn across your bench! The enhanced G Force Bluetooth X Weight Gauge Air can help drivers easily measure and identify the car's corner weight distribution, using the RC Gears app phone device. With the accuracy of 1 gram, drivers can precisely adjust their car's weight at each corner to achieve the best balance.

Accuracy Meets Craftsmanship

High-quality aluminum is used for the sensor rebound material. Utilizing a precise manufacturing process, G Force created a high-precision I-shaped sensor.
To improve the overall accuracy, the measurement algorithm is enhanced from the previous model, allowing the data to be obtained in the shortest possible time. The default unit is Gram, and switching to Ounce is also available!
When an inaccuracy is found, the customized in-app program allows can get the calibration done quickly using the 2000 gram weight, by tapping the screen three times.


BLE 5.0: Faster Connectivity and higher performance

This corner weighting system is powered by the latest Bluetooth 5.0 chip, resulting in a faster and more stable connection. When connected with your phone, the intuitive can interface in full screen.


 Small in size, Big in performance

G Force Bluetooth X Weight Gauge Air  is small and portable in size. It can accurately measure the weight distribution of the racing car's four corners. Therefore, the racer can quickly adjust the weight at each corner to achieve the best balance.


The Intuitive App
The App simulates practical scenarios to be intuitive and straightforward. Search X-Weight Air on the Google Play Store or Apple App Store.


Long-lasting power on coin battery

The emphasis on the ultra-low power consumption of Bluetooth 5.0 and the proprietary protocol get a CR2450 lithium coin battery to deliver the long-lasting, dependable performance for 30 continuous hours.

* Test conducted using Nanfu CR2450 lithium coin battery. There may be variation in battery circumstances due to the changes in the environment. This data is for reference only.

Features

  • App-enabled and data display in real-time via Bluetooth
  • Designed for all RC cars
  • Unit switchable between gram and oz
  • Powered by 4x CR2450 batteries
  • Measure the car's corner weight, front and rear distribution and make adjustment if necessary
  • The maximum weight limit for each scale is 2000 grams ( total 8000 grams )
  • Accurate measurement in 0.1g increments ( equivalent to 0.01 oz )

Specifications

  • Dimension: 68*68*22.5mm
  • Net weight of each scale: 70g
  • Rated Voltage: 2.6V-3.6V
  • Rated Current: <10mA@DC3V
  • Battery: CR2450 3V Lithium Coin Battery
  • Maximum weight of each scale: 2000g
  • Tolerance: ±0.1g / 0.1oz
  • Resolution: ±0.1g / 0.01oz

APP


iOS 9.0 or above / Android 8.0 or above, search keyword X-WEIGHT AIR on the app store.
